The Micro

00006
AU$280.00
In stock
1
Product Details

400KPA map sensor installed. until further notice.

Its small.
Mega2560 MCU.
4 Injector outputs.
4 ignition outputs (Smart coils or Igniters) Switchable 5v-12v.
all the usual protected inputs (TPS, Coolant, MAP, IAT).
Analog input 0-5v O2 Wideband input.
Clutch/Launch input.
Flex fuel input
Internal map 250 kpa.
Thermo fan.
Fuel Pump.
Tach output, Selectable 5 volt and 12 volt output.
One Low Current spare output.

Hall and VR triggers, A Plug in VR conditioner is required for VR.
5 volt Pull up for Crank & Cam triggers.
16×16 tables for injection, ignition and AFR target maps.

Comes with a 26 pin TE Superseal connector and pins.

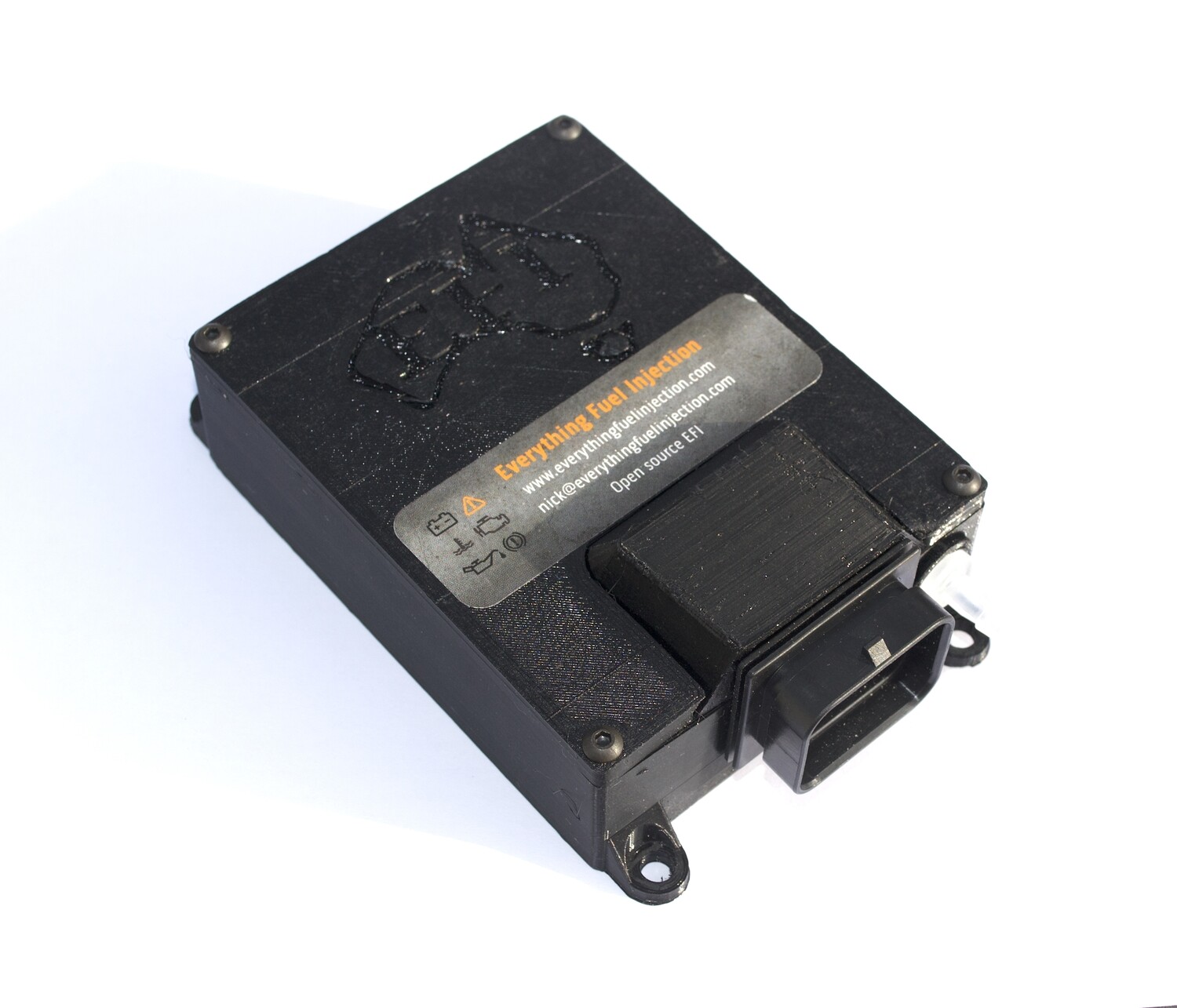

Comes in a printed case as pictured.
26 pin plug end and crimp ends to make your wiring harness

Uses Tuner Studio for tuning software

price is $280 AUD + Postage.

Addons.
Bluetooth configured $15
VR Conditioner $25

All units are tested on a running engine before sending out.
Please allow approximately 5-7 day lead time for unit to be built and tested.
Every unit is hand assembled at the time of ordering. Takes me around 4 hours to assemble one unit without any accessories.

Currently Compatible with Speeduino firmware available at http://www.speeduino.com

Please note these controllers are DIY EFI (Aftermarket and possibility not road legal).
The user must have some degree of knowledge of how a engine works and Electronic Fuel Injection systems and Electrical wiring.
As this is a DIY, I take no responsibility on how it is used and damage or harm it could cause.
There is no warranty or responsibility implied in any way.
I will help and support in any way possible and warranty against manufacturing defects.
Physical damage, Vehicle associated or incorrect wiring will not be covered.
